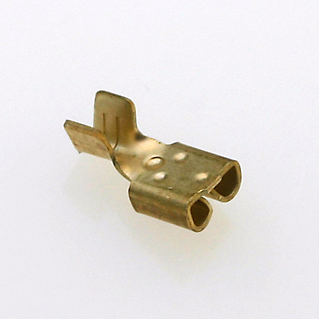

2,8 Female Terminal Brass 0,5-1,0 mm² AWG 20-18 With Locking Position
Savoy Technology designs and manufactures a multitude of products ranging from the most basic to the most complex electrical connectors, like hermaphrodite sliding terminals with the highest level of quality. Contact our technicians for more informations. Free advice
Reference
22044-123-204
Connection type
Female Terminal
Material
CuZn - Brass
Material abbrege
Brass
Treatment (Finishing)
None
Size
2,8 x 0,5
Crimp section Wire size (mm2)
0,5-1,0
Wire Size
AWG 20-18
Tab width diam Drill hole Size
2,8
Dimension L1
7,5
Dimension L2
3,5
Packaging Unit
35000
Packaging Type
Strip - Longitudinal
Packaging Pitch
9,5
Distinctive feature
With Locking Position
Locking position
YES
