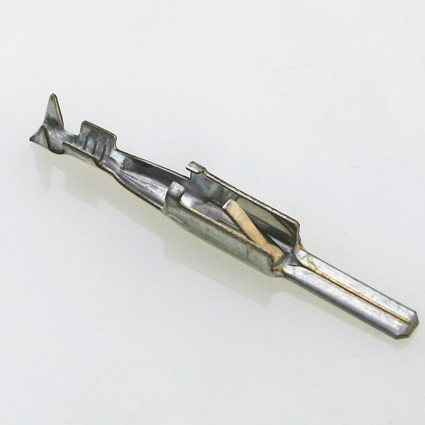

2,8 Tab Brass 0,5-1,0 mm2 AWG 20-18 With Locking Position – For Use In Housings
Together with its international customers Savoy Technology develop solutions to integrate new functions and to reduce the volume and the number of components in products. In this way we reduce the costs of our connector while keeping the highest level of quality. Contact our technicians for more informations. Free advice
Reference
25628-123-178
Connection type
Tab
Material
CuZn - Brass
Material abbrege
Brass
Treatment (Finishing)
Sn - Tin
Treatment abbrege
Tin
Size
2,8 x 0,8
Crimp section Wire size (mm2)
0,5-1,0
Wire Size
AWG 20-18
Tab width diam Drill hole Size
2,8
Dimension L1
22,5
Dimension L2
8
Packaging Unit
7000
Packaging Type
Strip - Longitudinal
Packaging Pitch
24,5
Distinctive feature
With Locking Position - For Use In Housings
Special Shape for housing
YES
Locking position
YES
