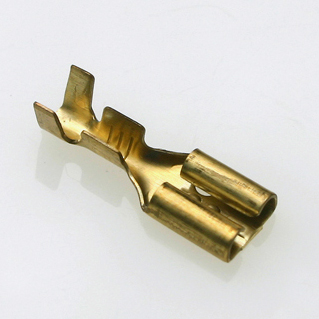

4,8 Female Terminal Brass 0,5-1,0 mm2 AWG 20-18 With Locking Position
Savoy Technology designs and manufactures a multitude of products ranging from the most basic to the most complex electrical connectors, like hermaphrodite sliding terminals with the highest level of quality. Contact our technicians for more informations. Free advice
Reference
25314-123-211
Connection type
Female Terminal
Material
CuZn - Brass
Material abbrege
Brass
Treatment (Finishing)
Sn - Tin
Treatment abbrege
Tin
Size
4,8 x 0,5
Crimp section Wire size (mm2)
0,5-1,0
Wire Size
AWG 20-18
Tab width diam Drill hole Size
4,8
Dimension L1
15,6
Dimension L2
6
Packaging Unit
10000
Packaging Type
Strip - Transverse
Packaging Pitch
18
Distinctive feature
With Locking Position
Locking position
YES
Norm
DIN 46247
