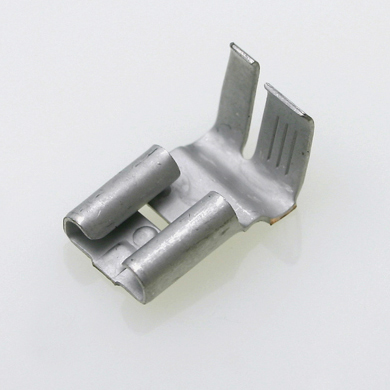

6,3 Female Terminal Bronze 0,5-1,5 mm2 AWG 20-16 Flag – With Locking Position
From a drawing, a technical specification or just a concept, Savoy Technology is able to support and manage a complete project in the field of stamping and molding connectors. Contact our technicians for more informations. Free advice
Reference
25039-213-011
Connection type
Female Terminal
Material
CuSn - Bronze
Material abbrege
Bronze
Treatment (Finishing)
Sn - Tin
Treatment abbrege
Tin
Size
6,3 x 0,8
Crimp section Wire size (mm2)
0,5-1,5
Wire Size
AWG 20-16
Tab width diam Drill hole Size
6,3
Dimension L1
2.5
Dimension L2
4
Packaging Unit
2400
Packaging Type
Strip - Transverse
Packaging Pitch
19
Distinctive feature
Flag - With Locking Position
Locking position
YES
Norm
DIN 46346 FORM B
