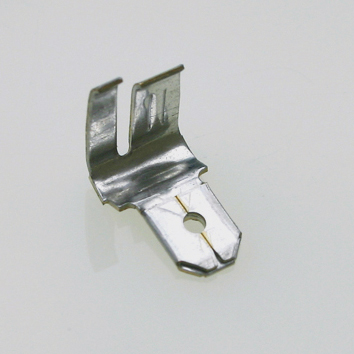

6,3 Tab Brass 1,0-2,5 mm² AWG 18-14 Flag – With Locking Position
From a drawing, a technical specification or just a concept, Savoy Technology is able to support and manage a complete project in the field of stamping and molding connectors. Contact our technicians for more informations. Free advice
Reference
22016-123-178
Connection type
Tab
Material
CuZn - Brass
Material abbrege
Brass
Treatment (Finishing)
Sn - Tin
Treatment abbrege
Tin
Size
6,3 x 0,8
Crimp section Wire size (mm2)
1,0-2,5
Wire Size
AWG 18-14
Tab width diam Drill hole Size
6,3
Dimension L1
11,2
Dimension L2
8
Packaging Unit
2000
Packaging Type
Strip - Longitudinal
Packaging Pitch
19
Distinctive feature
Flag - With Locking Position
Locking position
YES
