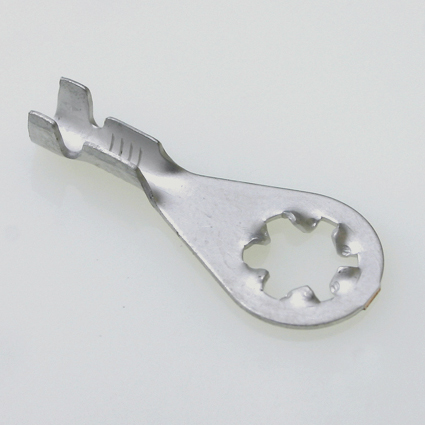

M5 Ring Terminal Bronze 0,5-1,0 mm2 AWG 20-18 Notched
Savoy Technology designs and manufactures a multitude of products ranging from the most basic to the most complex electrical connectors, like hermaphrodite sliding terminals with the highest level of quality. Contact our technicians for more informations. Free advice
Reference
25791-214-012
Connection type
Ring Terminal
Material
CuSn - Bronze
Material abbrege
Bronze
Treatment (Finishing)
Sn - Tin
Treatment abbrege
Tin
Size
M 5
Crimp section Wire size (mm2)
0,5-1,0
Wire Size
AWG 20-18
Tab width diam Drill hole Size
M5
Dimension L1
28
Dimension L2
22
Packaging Unit
4000
Packaging Type
Strip - Longitudinal
Packaging Pitch
30
Distinctive feature
Notched
