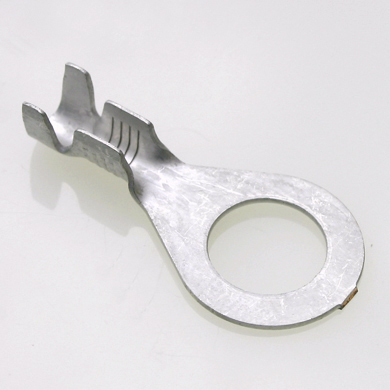

M8 Ring Terminal Brass 1,0-2,5 mm2 AWG 18-14
From a drawing, a technical specification or just a concept, Savoy Technology is able to support and manage a complete project in the field of stamping and molding connectors. Contact our technicians for more informations. Free advice
Reference
25221-123-011
Connection type
Ring Terminal
Material
CuZn - Brass
Material abbrege
Brass
Treatment (Finishing)
Sn - Tin
Treatment abbrege
Tin
Size
M 8
Crimp section Wire size (mm2)
1,0-2,5
Wire Size
AWG 18-14
Tab width diam Drill hole Size
M8
Dimension L1
4.5
Dimension L2
3
Packaging Unit
2500
Packaging Type
Strip - Longitudinal
Packaging Pitch
30
Norm
A8 - 2.5 DIN 46225
